PL2700智能限流IC，最大2A
詳情
代理PL2700 USB限流開關IC
PL2700，可調限流0.5A-2A，
PL2702，可調限流1A-3A，帶短路保護。 跟PL2700腳位PIN對PIN

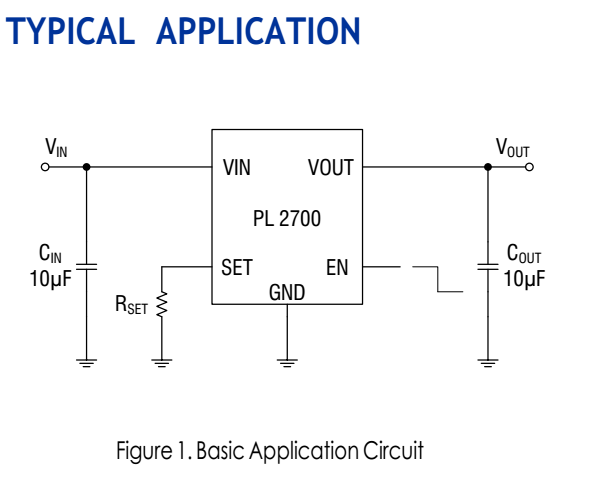

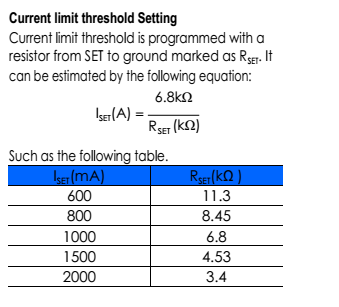

The PL2700 is a cost-effective, low voltage,single P-MOSFET load switch,optimized for self-powered and bus-powered Universal Serial Bus (USB) applications. This switch operates with inputs rangingfrom2.4Vto5.5V,makingitideal forboth 3V and 5V s The switch's low RDS(ON), 80mΩ ,meets USB voltage drop requirements. The PL2700 is also protected from thermal overload which limits power dissipation and junction temperatures. Current limit threshold is programmed with a resistor from SET to ground. The quiescent supply current is typically 15μA at switch on state. At switch off state the supply current decreases to less than 1μA.The PL2700 is 5 package.
FEATURES
? Compliant to USBSpecifications
? Integrated 80mΩ Power MOSFET
? Low Supply Current
15μA Typical at Switch On State
1μA Typical at Switch Off State
? Wide InputVoltage Range:2.4V to 5.5V
? Fast Transient Response:<2μs
? Reverse Current Flow Blocking
? ThermalShutdownProtection
? Hot Plug-In Application (Soft-Start)
? Available in a 5-Pin SOT23-5Package
