PS7201 SOT-23-5 單電池鋰離子和鋰聚電池保護集成電路

PS7201是一種針對鋰離子/聚合物電池保護的高集成解決方案。PS7201包含內部電源MOSFET、高精度電壓檢測電路和延遲電路。PS7201具有電池應用中所需的所有保護功能，包括過充、過放電、過電流和負載短路保護等。準確的過充電檢測電壓保證安全充分充電。低備用電流在存儲期間從電池排出的電流很少。該設備不僅針對數字手機，還適用于任何其他需要長期電池壽命的鋰離子和鋰聚電池驅動的信息設備。

PS7201需要最少數量的現成的外部組件，并可在一個節省空間的SOT23-5軟件包中使用。

產品特點

充電器反向連接的保護電池單元反向連接的保護

過溫保護，過充電流保護

兩步過電流檢測：過放電電流負載短路

充電器檢測功能

0V電池充電功能

50mΩ低RSS（ON）內部功率MOSFET

延遲時間是在內部生成的

高精度電壓檢測，低電流消耗

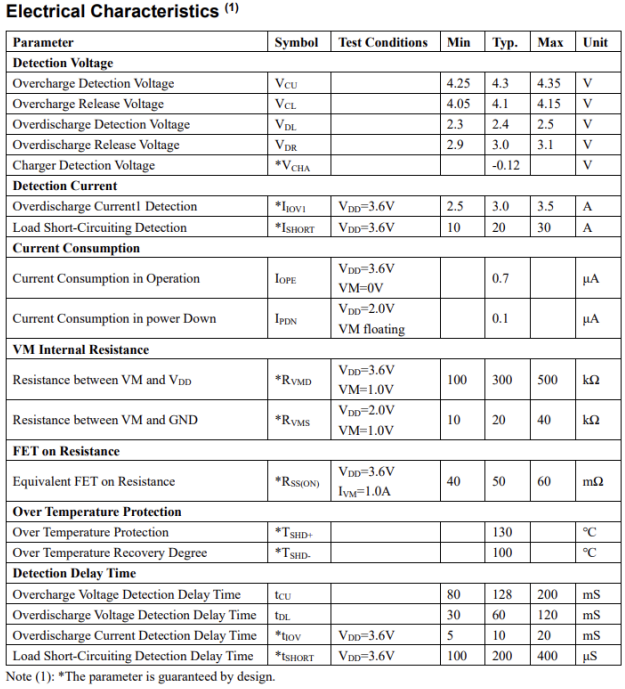

The PS7201 is a high integration solution for lithium-ion/polymer battery protection. PS7201 contains internal power MOSFET, high-accuracy voltage detection circuits and delay circuits. PS7201 has all the protection functions required in the battery application including overcharging, over discharging, overcurrent and load short circuiting protection etc. The accurate overcharging detection voltage ensures safe and full utilization charging. The low standby current drains little current from the cell while in storage. The device is not only targeted for digital cellular phones, but also for any other Li-Ion and Li-Poly battery-powered information appliances requiring longterm battery life. The PS7201 requires a minimal number of readily available, external components and is available in a space saving SOT23-5 package.

Features? Protection of Charger Reverse Connection? Protection of Battery Cell Reverse Connection? Over-temperature Protection? Overcharge Current Protection? Two-step Overcurrent Detection:Over Discharge CurrentLoad Short Circuiting? Charger Detection Function? 0V Battery Charging Function? 50mΩ Low RSS(ON) Internal Power MOSFET? Delay Times are generated inside? High-accuracy Voltage Detection? Low Current ConsumptionOperation Mode: 0.7μA typ.Power-down Mode: 0.1μA typ.? Only One External Capacitor Required? Available in SOT23-5 Package? -40°C to +85°C Temperature RangeApplications? One-Cell Li-ion Battery Pack? Power Bank? One-Cell Li-poly Battery Pack? IOT Sensor/Electronic Toys
